RAD Single Speed
RAD Single Speed Torque Wrench Features:
- Reliable and dependable solution for the installation and removal of heavy-duty fasteners
- Patented drive system delivering one of the highest power-to-weight ratios of any pneumatic controlled bolting system
- Smooth continuous flow of controlled torque eliminating destructive hammering
- Lightweight ergonomic pistol grip design reducing operator strain and injury, resulting in increased productivity
- Stall type tool capable of accuracy of +/-4%, and repeatability of +/-2%
Torque Range: 50-11,000 ft. lbs. (70-15,000 Nm)
Pneumatic Torque Wrench with High Power-to-Weight Ratio
The RAD Torque Single Speed pneumatic torque wrench is best known for its excellent power-to-weight ratio. But don’t let its size fool you, the RAD Single Speed is engineered for heavy duty applications all thanks to the latest generation of its planetary gearboxes. This tool is designed for extreme duty use in a variety of industries worldwide.
All RAD pneumatic tools include:
- Reaction arm and snap ring
- Hose and fittings
- Tool holder with FRL unit
- Operator’s manual
- Calibrated to ISO 17025
- Safety instruction available on USB flash drive
This is a title override
This is the description Sally wanted added to the product catalogue.
This is the description Sally wanted added to the product catalogue.
Select Your Preferred Unit of Measurement for the Model Chart
Imperial Specifications | ||
|---|---|---|
| Tool Model | Torque Range | RPM |
RAD 350SL | 47-350 ft. lbs. | 65 |
RAD 7GX | 100-700 ft. lbs. | 22 |
RAD 10GX | 200-1000 ft. lbs. | 10 |
RAD 15DX | 300-1500 ft. lbs. | 10 |
RAD 25GX | 500-2500 ft. lbs. | 9 |
RAD 30DX | 900-3000 ft. lbs. | 8 |
RAD *34GX | 1000-3400 ft. lbs. | 7 |
RAD 50DX | 1500-5000 ft. lbs. | 6 |
RAD 60DX | 2000-6000 ft. lbs. | 5 |
RAD 80DX | 2500-8000 ft. lbs. | 4 |
RAD 110DX | 4000-11000 ft. lbs. | 3 |
Metric Specifications | ||
|---|---|---|
| Tool Model | Torque Range | RPM |
RAD 475SL-M | 47-475 Nm | 65 |
RAD 10GX-M | 150-950 Nm | 22 |
RAD 14GX-M | 275-1400 Nm | 10 |
RAD 20DX-M | 400-2000 Nm | 10 |
RAD 34GX-M | 700-3400 Nm | 9 |
RAD 40DX-M | 1200-4000 Nm | 8 |
RAD *46GX-M | 1400-4600 Nm | 10 |
RAD 70DX-M | 2000-7000 Nm | 6 |
RAD 80DX-M | 2700-8000 Nm | 5 |
RAD 110DX-M | 3400-11000 Nm | 4 |
RAD 150DX-M | 5500-15000 Nm | 3 |
*Also available in a 1.5″ square drive.
Ergonomics
The comfortable pistol grip design reduces cycle time and operator fatigue.
Productivity
Quickly set your torque and start tightening bolts immediately.
Reliability
RAD pneumatic tools are the most reliable on the market, minimizing downtime.

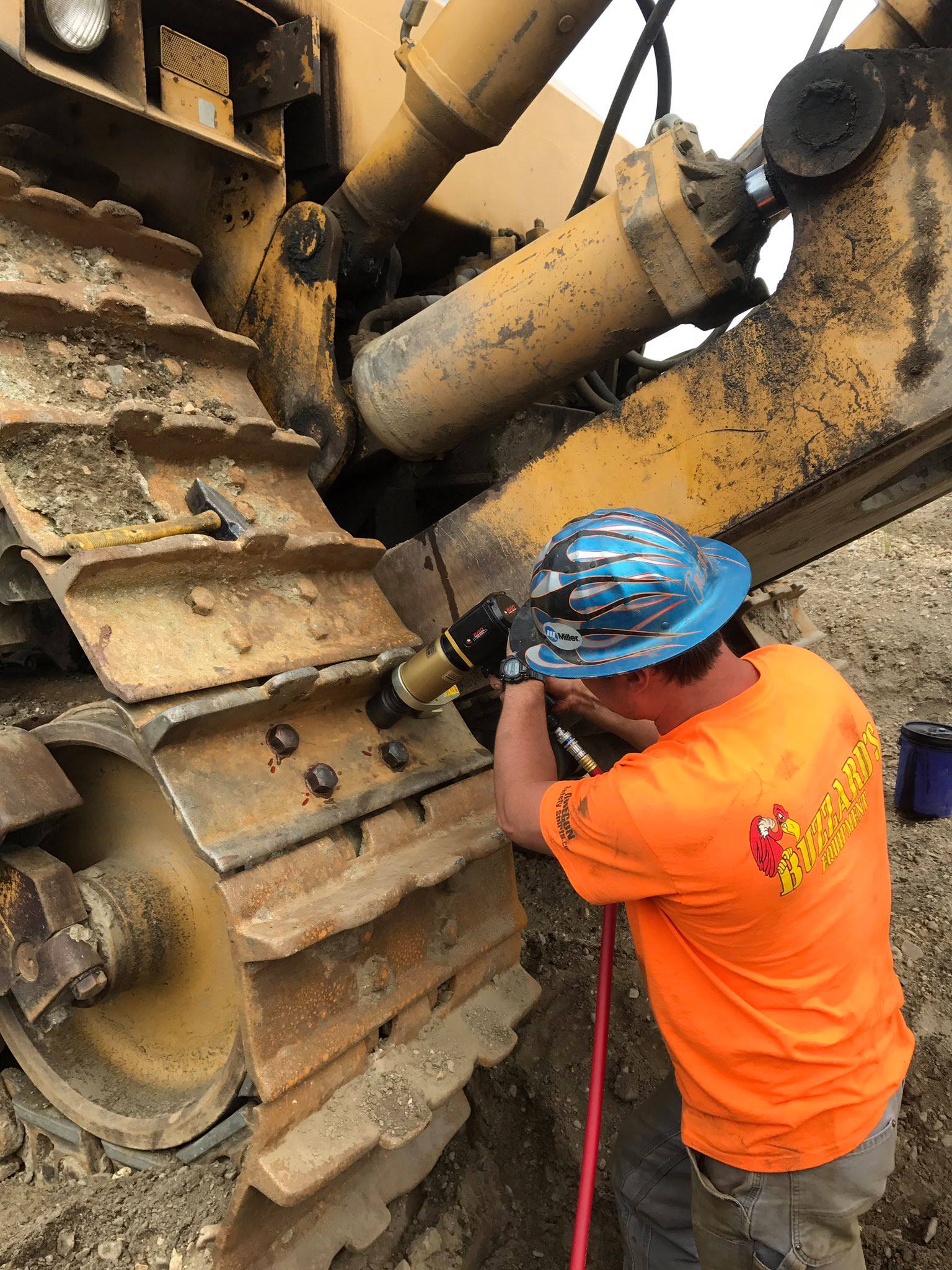

In Action
RAD Single Speed

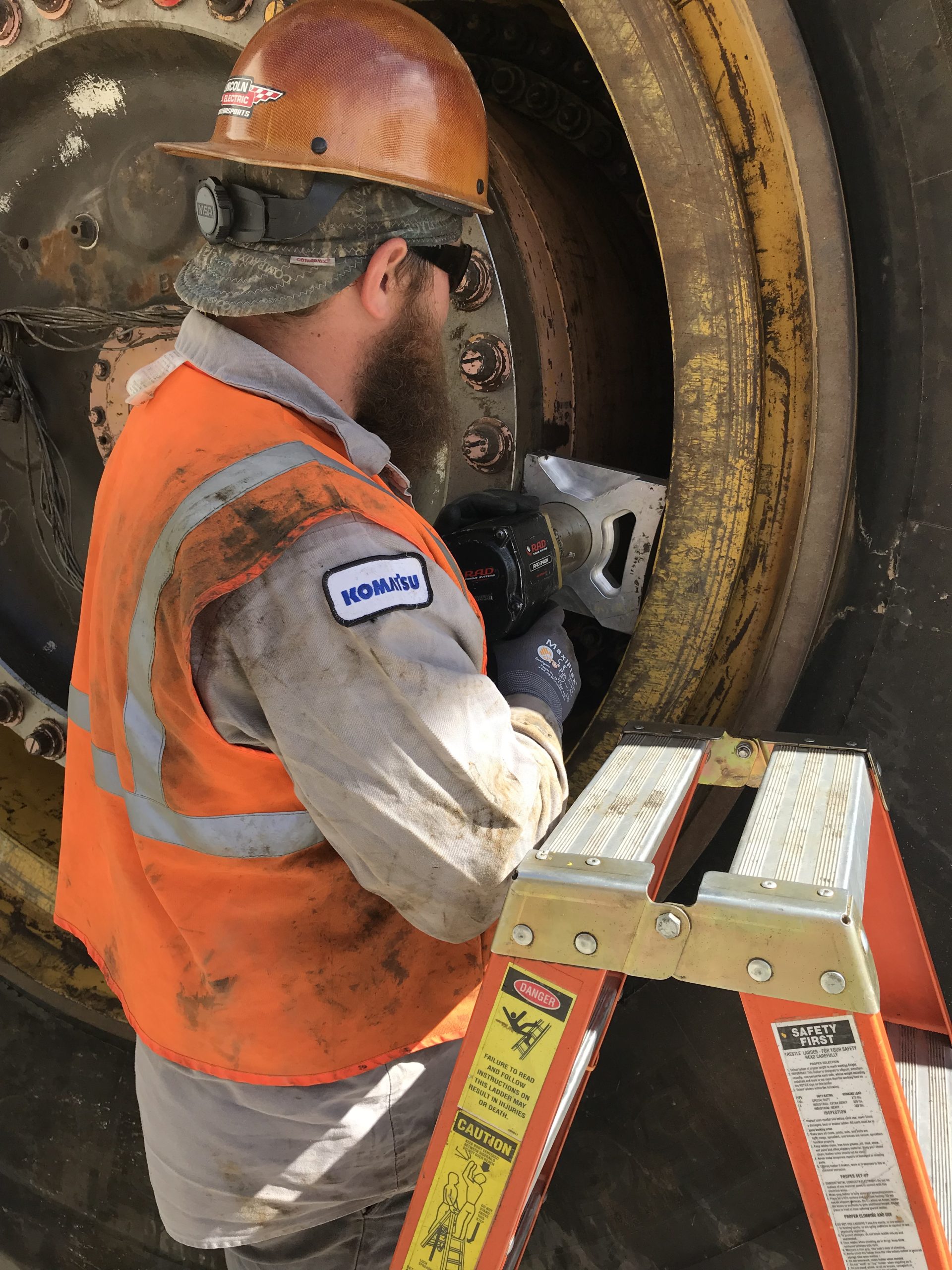

In Action
RAD Single Speed

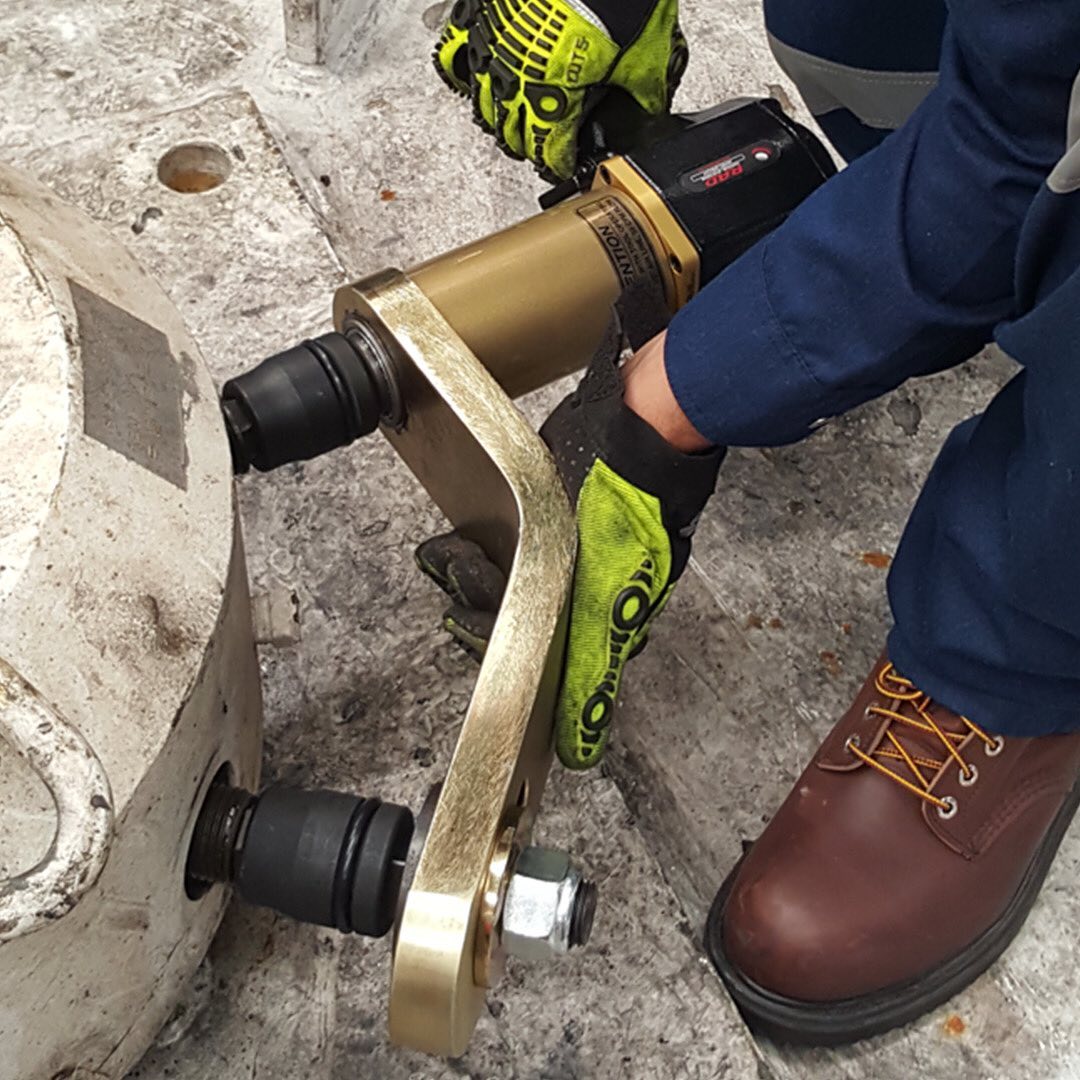

In Action
